| Category | Specification |
|---|---|
| Engine Type | 4‑stroke single‑cylinder, air‑cooled, BS‑VI |
| Displacement | 99.7 cc |
| Max Power | 3.20 kW (4.3 bhp) @ 6,000 rpm |
| Max Torque | 6.5 Nm @ 3,500 rpm |
| Starting System | Kick & i‑Touch electric start (ISG) |
| Fuel System | Eco‑Thrust Fuel Injection (ETFi) |
| Transmission | Single‑speed automatic (centrifugal wet clutch) |
| Drive | Roller chain |
| Front Suspension | Telescopic hydraulic spring fork |
| Rear Suspension | Swing‑arm with hydraulic shocks |
| Front/Rear Brake | 110 mm drum (Synchronized Braking System) |
| Front/Rear Tyres | 2.5×16 tubed (spoke wheels) |
| Fuel Tank Capacity | 4 L (incl. 1.25 L reserve) |
| Kerb Weight | 89 kg |
| Seat Height | 787 mm |
| Ground Clearance | 158 mm |
| Wheelbase | 1,228 mm |
| Top Speed | ≈58 km/h |
| Mileage | ≈65 kmpl |
| Electricals | 12 V flywheel magneto; LED DRL; USB port; analog console |
| Other Features | Engine kill switch; heavy-duty tyres/shocks; stylized graphics |

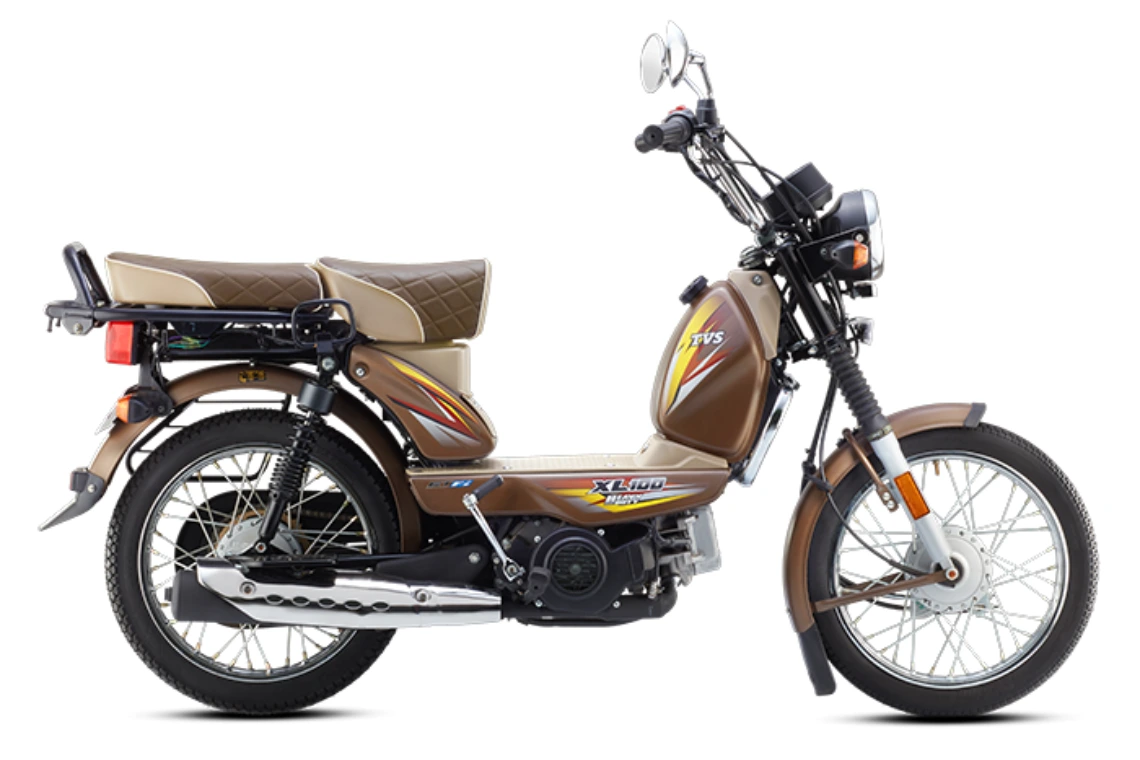

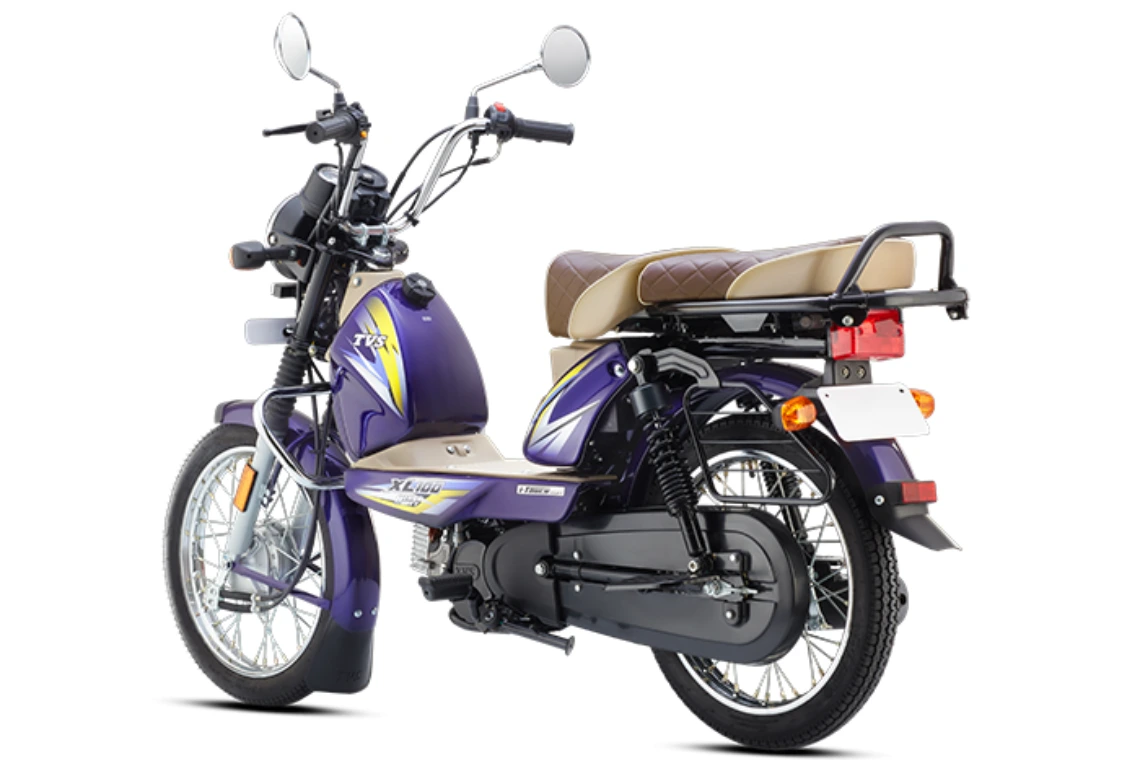

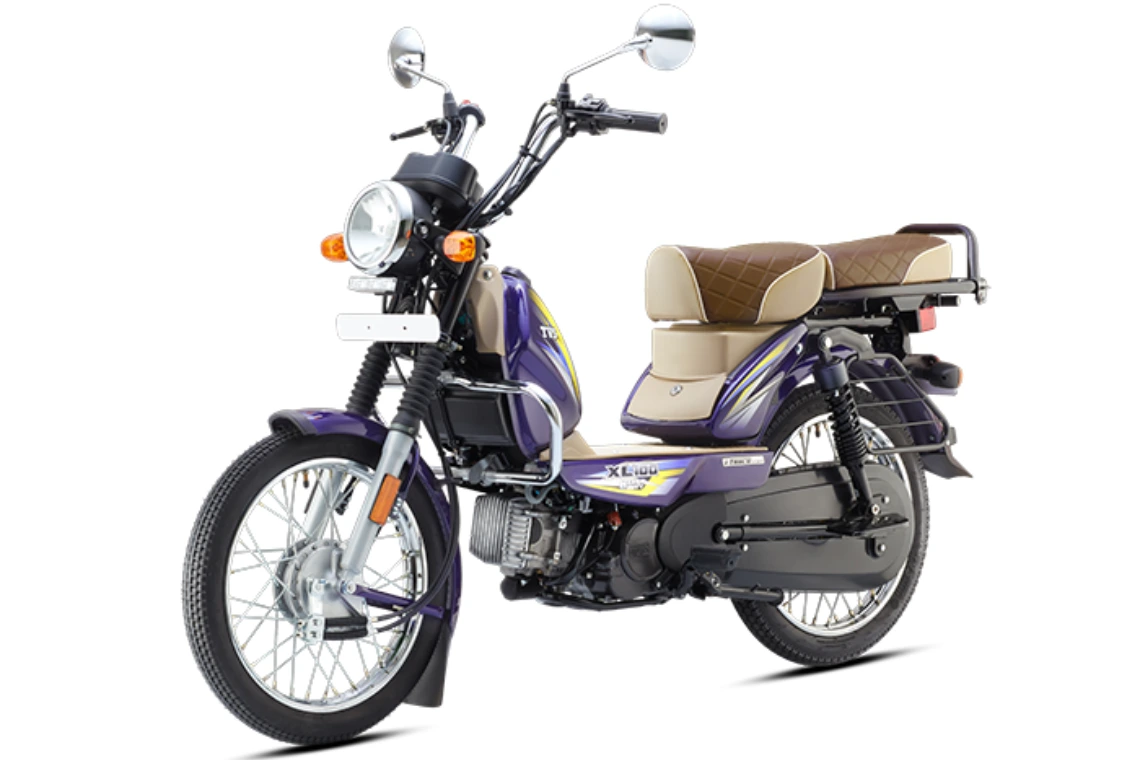

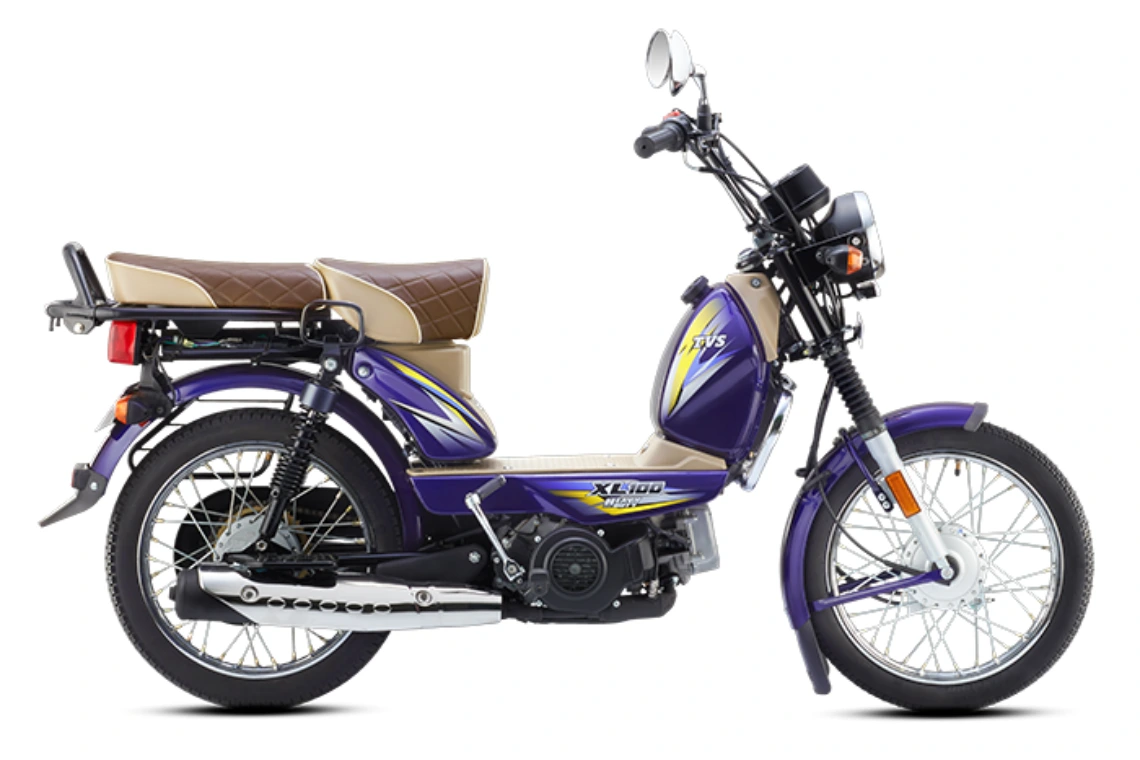

The TVS XL100 Heavy Duty i‑Touch Start Win Edition is a rugged moped optimized for heavy-duty chores and rural use. Powered by a 99.7 cc BS‑VI fuel-injected engine, it generates 4.3 bhp and 6.5 Nm of torque, boosted by a silent i‑Touch electric starter alongside traditional kick-start. It features a single-speed gearbox, chain drive, synchronized drum brakes, and durable suspension with heavy-duty tyres. With a 4 L tank and 65 kmpl mileage, it offers impressive range. Practical extras like a USB port, LED DRL, and engine kill switch enhance its utility. Weighing 89 kg and sporting stylized graphics, the Win Edition blends ruggedness with convenience.
